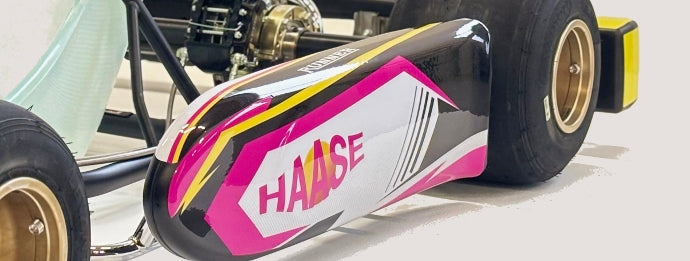

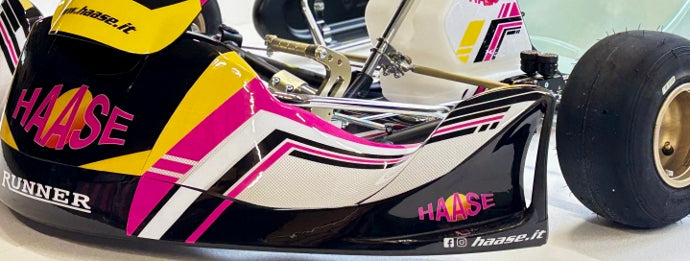

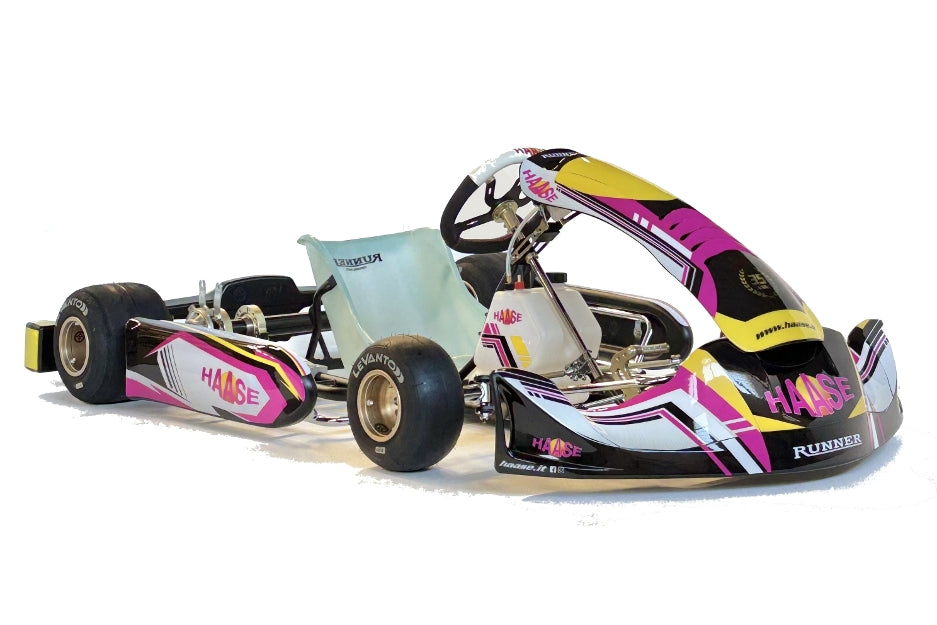

The latest 2022 chassis from Haase. Proving a winner straight out of the box in Europe in the very competitive IAME worlds.
| Homologation: | CIK/FIA 014/CH/22 |
| Main frame tubing: | Cr-Mo steel 30mm |
| Wheelbase: | 1040mm |
| Rear axle: | 40 o 50 Ø mm, black, with 3 positions adjustable ride height |
| Braking system: |
 (CIK/FIA 014/B2/11) |
| Brake lines: | braided steel, silver |
| Brake disk: | Self-ventilated floating rear disk, in cast-iron, 190 mm Ø, thickness 16 mm |
| Rear brake caliper: | Black anodized, special alloy forged caliper, 4 pistons, self-adjusting |
| Brake pump: | Double-circuit brake master cylinder with aluminium oil recovery tank |
| Stub axle: | 25mm Ø hollow, with 10mm precision ground king-pin bolt |
| Steering wheel: | 335 Ø mm, leather with embroidery |
| Wheels: | Black magnesium wheels, low volume, 212-132mm |
| Chassis set up: |
|
| Features: |
|
| Seat: | Silver model, flat bottom |
| Bodywork: | CIK/FIA homologated |
| Graphics: |
|
| Rear bumper: | CIK/FIA homologated rear plastic protection |
| Chain guard: | Closed type KG |
| Options at extra charge: |
|
