We are proud to announce HAASE has given us the opportunity to bring you there very Competitive and Highest of quality product to the New Zealand market.
Homologation:Rotax registration EDOX 15 30mm - EDOX 16 32mm

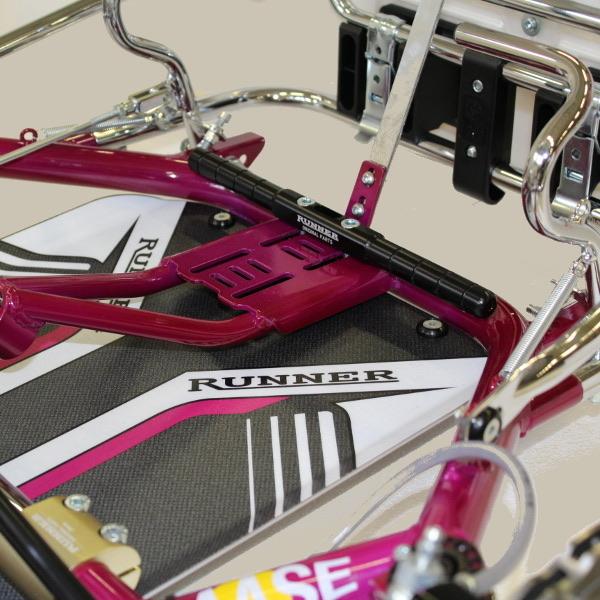

Main frame tubing:Cr-Mo steel 32/30mm
Wheelbase:1045mm
Rear axle:40mm Ø, Black, with 2 positions adjustable ride height
Braking system:
(CIK/FIA 132/FR/14)
Brake lines:Braided steel, silver
Rear brake disk:Self-ventilated floating rear disk, in cast-iron, 190mm Ø, thickness 16mm
Front brake disk:Self-ventilated, in cast-iron, Ø 160mm, thickness 11mm with front magnesium brake disk carrier

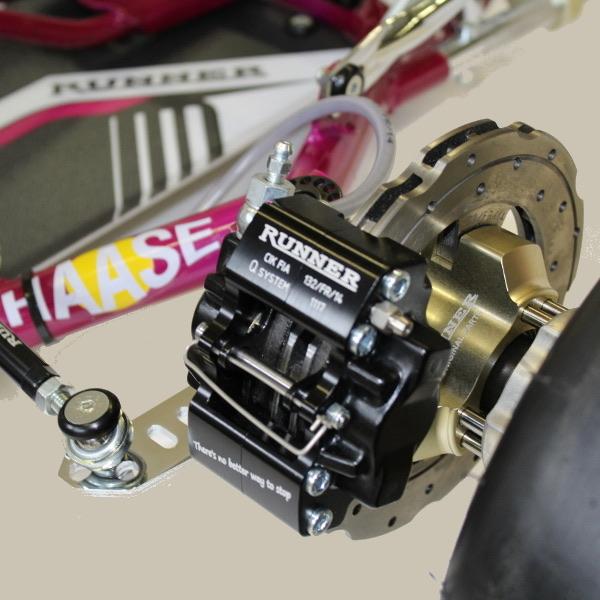

Rear brake caliper:Black anodized, special alloy forged caliper, 4 pistons, self-adjusting
Front brake calipers:Black anodized, special alloy forged caliper, 2 pistons, self-adjusting
Brake pump:Double-circuit brake master cylinder with aluminium oil recovery tank
Stub axle:25mm Ø hollow, with 10mm precision ground king-pin bolt
Steering wheel:330mm Ø leather with embroidery
Wheels:Black magnesium wheels, low volume, 212-132mm
Chassis set up:
- 16 positions adjustable caster/camber pills
- Front ride height
- Adjustable Ackerman
- Complete front stabilizer
Features:
- Magnesium accessories
- Adjustable exhaust holder bracket
- Axle bearing flange with 5 fixing holes
- Bearing axle locking adjustment screw
- Axle locking bush
- Radiator support
- Fuel pump support
- Air filter support
- Engine mount
- Adjustable feet support
Seat:Flat bottom, light weight, clear fiberglass
Bodywork:CIK/FIA homologatedGraphics:Complete set, high thickness
Options at extra charge
- Aluminium pedals
- Side removable bar
- Rear torsion bar
